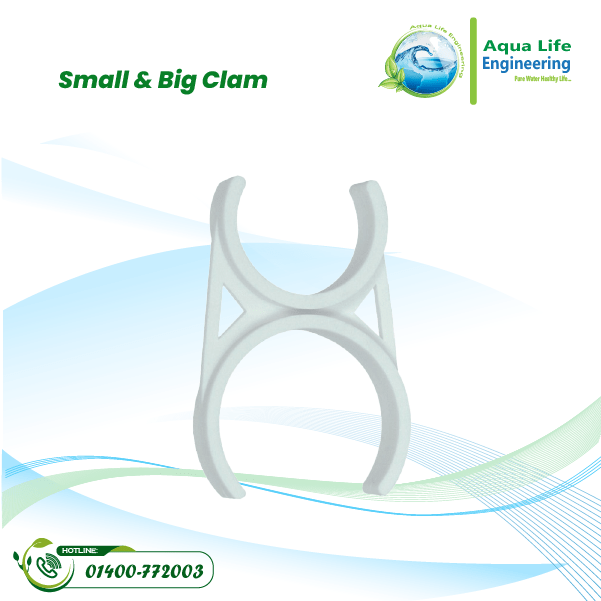

Small & Big Clam

Function of X Clamp in RO

X clamps offer a secure and leak-proof connection for filter housings in RO systems.

• They have an “X” shaped body with four prongs that fit into grooves on the filter housing, making sure a tight and stable grip.
• it is unlike C-clamps that are temporary solutions, X clamps are designed for permanent installation.

Material of X Clamp in RO

• X clamps are typically made of plastic for affordability and ease of use.
• However, some heavy-duty options might be made of stainless steel for increased durability and resistance to corrosion, especially in high-pressure or commercial applications.

Size of X Clamp in RO

• The “2×2.5” in the name indicates the clamp’s compatibility:
  • 2 represents the inner diameter of the clamp (in inches), meant to fit around a 2-inch pipe or tubing.
  • 2.5 represents the outer diameter of the filter housing (in inches) that the clamp secures.

Applications of X Clamp in RO

• X clamps are initially used for securing pre-filters, post-filters, and RO membrane housings in RO systems.
• They can also be used for other applications requiring a secure and leak-proof connection with similar size constraints.

Specifications of X Clamp in RO

• Material: Typically plastic (affordable, lightweight) or stainless steel (durable, corrosion-resistant).
• Size: Inner diameter to fit pipe/tubing size and outer diameter to fit filter housing size. Common sizes include 2×2.5, 2×3, 2×4, etc.
• Pressure rating: Maximum pressure the clamp can withstand (important for high-pressure RO systems).
• Operating temperature range: Temperature range the clamp can function in effectively.
